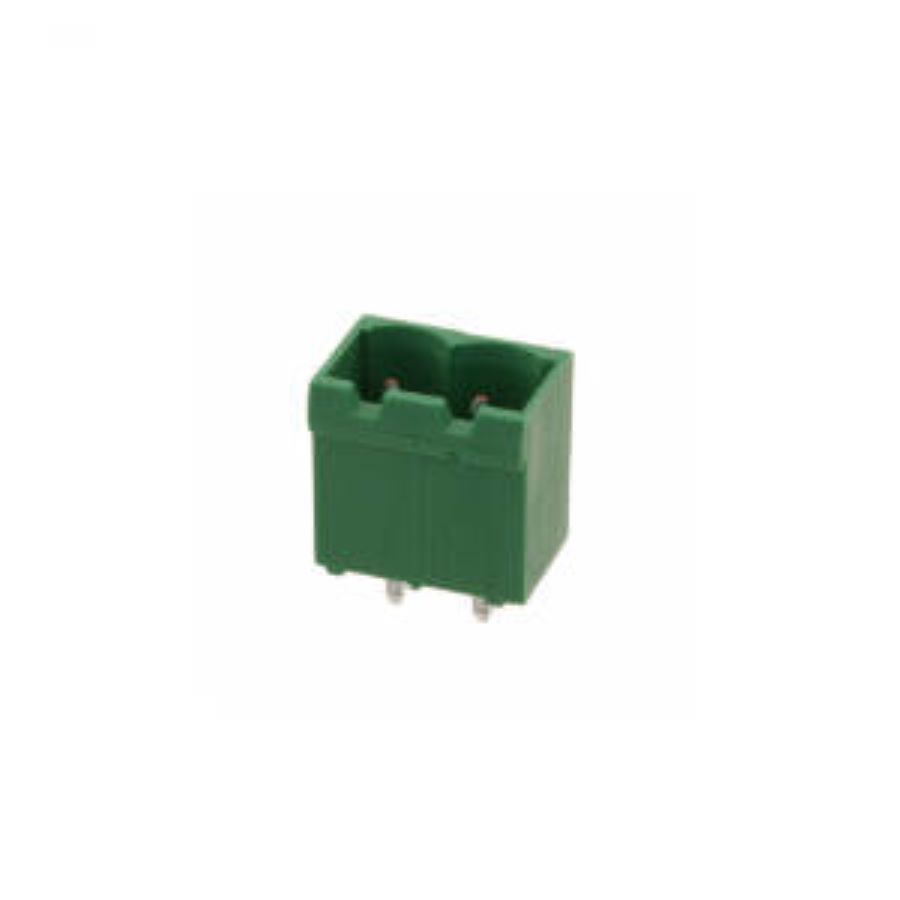

796636-2
Manufacturer:
TE Connectivity
Mfr.Part #:
796636-2
Datasheet:
Description:
Terminal Blocks Through Hole 2 5.08 mm 15 A 300 V 30 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Length | 11.98 mm |
| Width | 8.35 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 300 V |
| Number of Pins | 2 |
| Packaging | Box |
| Voltage Rating | 300 V |
| Depth | 8.35 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 5.08 mm |
| Current | 15 A |
| Current Rating | 15 A |
| Max Current Rating | 15 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Header |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 300 V |
| Housing Color | Green |
| Tail Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Plug |
| Wire Gauge Range | 30 AWG to 12 AWG |
Stock: 26082
Distributors
pcbx
pcbxUnit Price$0.40010
Ext.Price$0.40010
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40010 | $0.40010 |
| 10 | $0.29495 | $2.94950 |
| 25 | $0.23169 | $5.79225 |
| 50 | $0.21203 | $10.60150 |
| 100 | $0.19493 | $19.49300 |
| 300 | $0.18296 | $54.88800 |
| 500 | $0.16964 | $84.82000 |
| 1000 | $0.15730 | $157.30000 |
